VDI 2198 | | | | | | | | |
Caractéristiques | | | | | | | | |
1.1 | Constructeur | CESAB | CESAB | CESAB | CESAB | CESAB | CESAB | CESAB |
1.2 | Type de modèle | BLITZ 412 | BLITZ 415 | BLITZ 416 | BLITZ 418 | BLITZ 416 L | BLITZ 418 L | BLITZ 420 |
1.3 | Mode de propulsion: électrique (batterie), diesel, essence, GPL | électrique | électrique | électrique | électrique | électrique | électrique | électrique |
1.4 | Guida: a mano, a piedi, in piedi, seduto | assis | assis | assis | assis | assis | assis | assis |
1.5 | Conduite: à conducteur accompagnant, debout, assis Q (kg) | 1200 | 1500 | 1600 | 1800 | 1600 | 1800 | 2000 |
1.6 | Centre de gravité de la charge c (mm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
1.8 | Distance entre le milieu de la roue avant et la charge x (mm) | 365.5 (b) | 365.5 (b) | 365.5 (b) | 365.5 (b) | 365.5 (b) | 365.5 (b) | 365.5 (b) |
1.9 | Empattement y (mm) | 1290 | 1290 | 1400 | 1400 | 1532 | 1532 | 1532 |
| | | | | | | | |
2.1 | Poids kg | 2950 (a) | 3140 (a) | 3180 (a) | 3320 (a) | 3300 (a) | 3480 (a) | 3520 (a) |
2.2 | Charge par essieu avec charge, avant/arrière kg | 3675 / 475 | 4150 / 490 | 4380 / 480 | 4600 / 520 | 4330 / 570 | 4650 / 530 | 4940 / 580 |
2.3 | Charge par essieu sans charge, avant/arrière kg | 1665 / 1285 | 1670 / 1470 | 1650 / 1530 | 1630 / 1690 | 1820 / 1480 | 1830 / 1550 | 1820 / 1700 |
| | | | | | | | |
Roues, Châssis | | | | | | | | |
3.1 | Pneus: B=bandages, PPS=pneus pleins souples, PN=pneus gonflés, J=jumelés | B - PPS - PN | B - PPS - PN | B - PPS - PN | B - PPS | B - PPS - PN | B - PPS | B - PPS |
3.2 | Dimensions roues avant | 432x152 - 18x7-8 - 18x7-8 | 432x152 - 18x7-8 - 18x7-8 | 432x152 - 18x7-8 - 18x7-8 | 457x178 - 200/50-10 | 432x152 - 18x7-8 -18x7-8 | 8 457x178 - 200/50-10 | 457x178 - 200/50-10 |
3.3 | Dimensions roues arrière | 381x127 - 16x6-8 - 16x6-8 | 381x127 - 16x6-8 - 16x6-8 | 381x127 - 16x6-8 - 16x6-8 | 381x127 - 16x6-8 | 381x127 - 16x6-8 - 16x6-8 | 381x127 - 16x6-8 | 381x127 - 16x6-8 |
3.5 | Nombre de roues, avant/arrière (x = motrice) | 2x / 2 | 2x / 2 | 2x / 2 | 2x / 2 | 2x / 2 | 2x / 2 | 2x / 2 |
3.6 | Voie, avant b10 (mm) | 839 - 851 - 851 | 839 - 851 - 851 | 839 - 851 - 851 | 843 - 866 | 839 - 851 - 851 | 843 - 866 | 843 - 866 |
3.7 | Voie, arrière b11 (mm) | 863 - 843 - 843 | 863 - 843 - 843 | 863 - 843 - 843 | 863 - 843 | 863 - 843 - 843 | 863 - 843 | 863 - 843 |
| | | | | | | | |
Dimensions | | | | | | | | |
4.1 | Inclinaison du mât, avant/arrière α / β (dégré) | 2°30' / 6° | 2°30' / 6° | 2°30' / 6° | 2°30' / 6° | 2°30' / 6° | 2°30' / 6° | 2°30' / 6° |

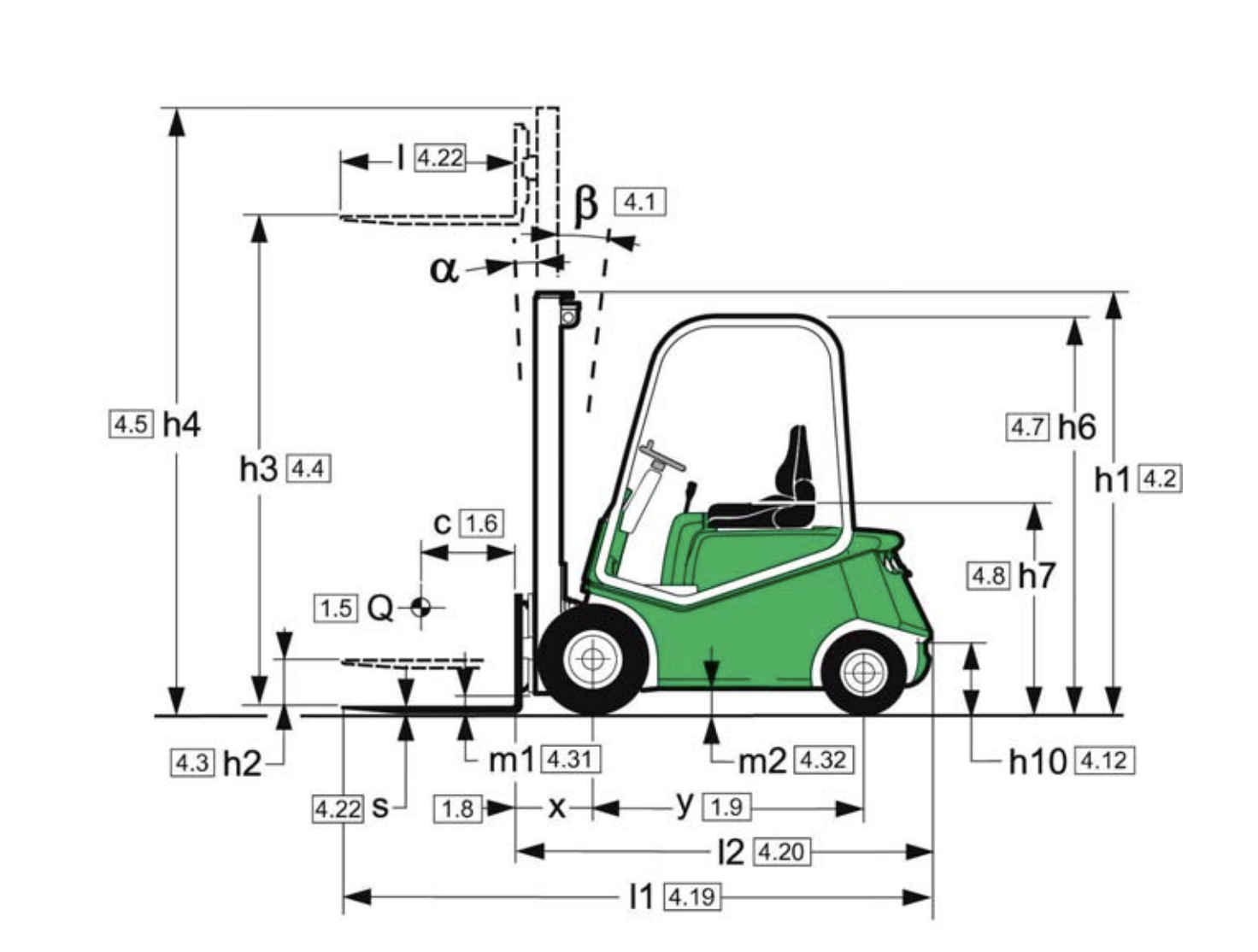

4.2 | Hauteur du mât, baissé h1 (mm) | 2160 | 2160 | 2160 | 2160 | 2160 | 2160 | 2160 |
4.3 | Levée libre h2 (mm) | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
4.4 | Course de levée h3 (mm) | 3170 | 3170 | 3170 | 3170 | 3170 | 3170 | 3170 |
4.5 | Hauteur du mât, déployé h4 (mm) | 3720 | 3720 | 3720 | 3720 | 3720 | 3720 | 3720 |
4.7 | Hauteur protège conducteur h6 (mm) | 1950 | 1950 | 1950 | 1950 | 1950 | 1950 | 1950 |
4.8 | Hauteur siège h7 (mm) | 888 | 888 | 888 | 888 | 888 | 888 | 888 |
4.12 | Hauteur d'attelage h10 (mm) | 630 | 630 | 630 | 630 | 630 | 630 | 630 |
4.19 | Longueur totale l1 (mm) | 2948.5 (b) | 2993.5 (b) | 3058.5 (b) | 3103.5 (b) | 3190.5 (b) | 3190.5 (b) | 3235.5 (b) |
4.20 | Longueur au talon des fourches l2 (mm) | 1948.5 (b) | 1993.5 (b) | 2058.5 (b | 2103.5 (b) | 2190.5 (b) | 2190.5 (b) | 2235.5 (b) |
4.21 | Largeur totale b1/b2 (mm) | 990-1003-1003/non | 990-1003-1003/non | 990-1003-1003/non | 1006 - 1066/non | 990-1003-1003/non | 1006 - 1066/non | 1006 - 1066/non |
4.22 | Dimensions des fourches s/e/l (mm) | 35 x 100 x 1000 | 35 x 100 x 1000 | 35 x 100 x 1000 | 35 x 100 x 1000 | 35 x 100 x 1000 | 35 x 100 x 1000 | 35 x 100 x 1000 |
4.23 | Tablier porte-fourches DIN 15173, classe / type A, B | II A | II A | II A | II A | II A | II A | II A |
4.24 | Largeur du tablier porte-fourches b3 (mm) | 900 | 900 | 900 | 900 | 900 | 900 | 900 |
4.31 | Garde au sol sous mât m1 (mm) | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
4.32 | Garde au sol au centre du chariot m2 (mm) | 90 | 90 | 90 | 90 | 90 | 90 | 90 |

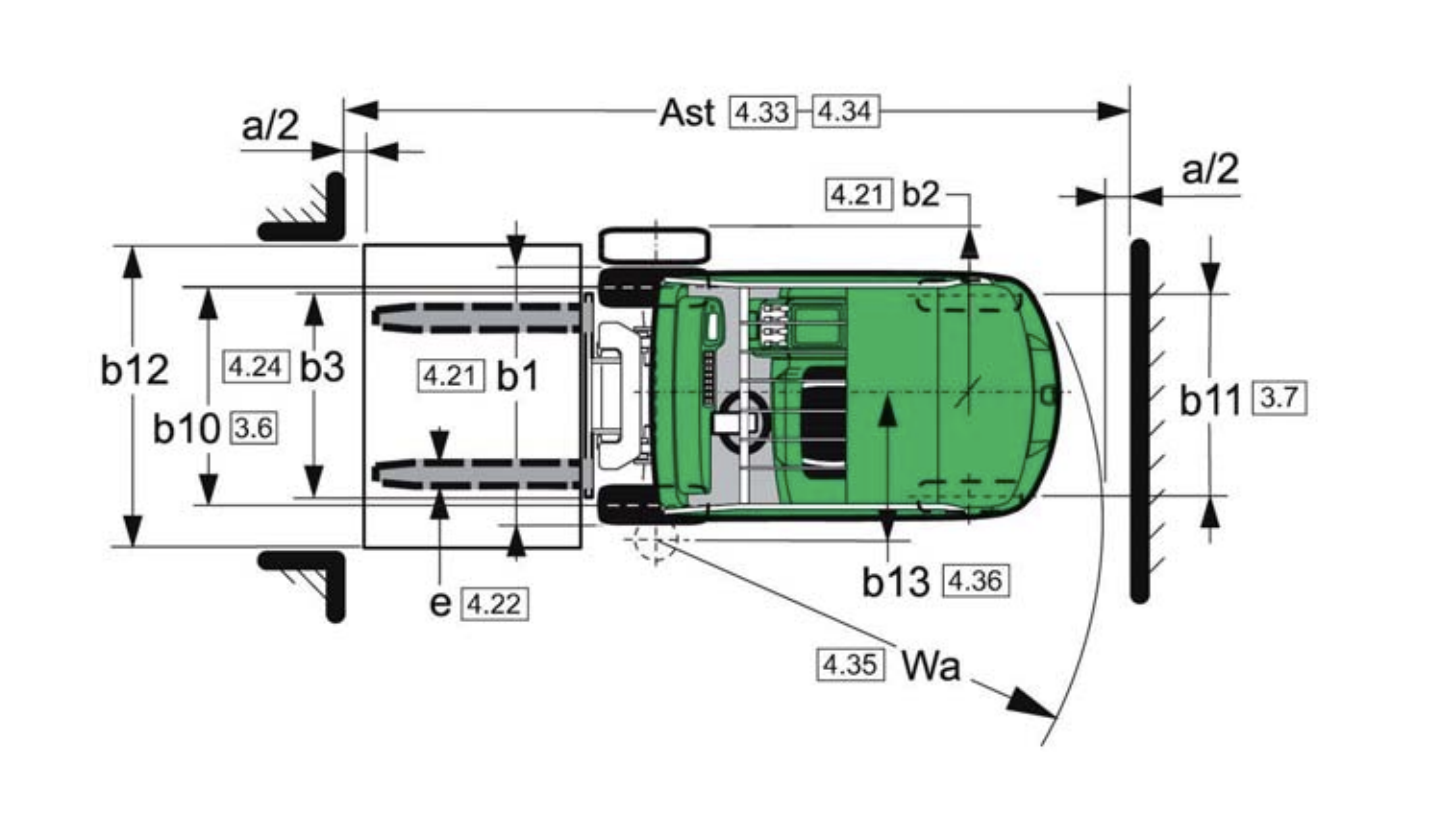

4.33 | Largeur d'allée avec une palette 1000x1200 en travers Ast (mm) | 3301 | 3341 | 3403 | 3442 | 3524 | 3524 | 3564 |
4.34 | Largeur d'allée avec une palette 800x1200 en long Ast (mm) | 3496 | 3536 | 3599 | 3638 | 3721 | 3721 | 3761 |
4.35 | Rayon de giration Wa (mm) | 1730 | 1770 | 1833 | 1872 | 1955 | 1955 | 1995 |
| | | | | | | | |
Performances | | | | | | | | |
5.1 | Vitesse de translation, avec/sans charge km/h | 15 / 16 | 15 / 16 | 15 / 16 | 14.5 / 16 | 15 / 16 | 14.5 / 16 | 14.5 / 16 |
5.2 | Vitesse de levée, avec/sans charge m/s | 0.4 / 0.6 | 0.4 / 0.6 | 0.4 / 0.6 | 0.38 / 0.6 | 0.4 / 0.6 | 0.38 / 0.6 | 0.36 / 0.6 |
5.3 | Vitesse de descente, avec/sans charge m/s | 0.55 / 0.50 | 0.55 / 0.50 | 0.55 / 0.50 | 0.55 / 0.50 | 0.55 / 0.50 | 0.55 / 0.50 | 0.55 / 0.50 |
5.5 | Force de traction, avec/sans charge N | 5200 / 5400 | 5200 / 5400 | 5200 / 5400 | 5200 / 5400 | 5200 / 5400 | 5200 / 5400 | 5200 / 5400 |
5.6 | Force de traction maximum, avec /sans charge (S2 5') N | 14450 / 15000 (d) | 14450 / 15000 (d) | 14450 / 15000 (d) | 14450 / 15000 (d) | 14450 / 15000 (d) | 14450 / 15000 (d) | 14450 / 15000 (d) |
5.7 | Rampe, avec/sans charge (S2 30') % | 14 / 16.5 | 13.5 / 16 | 13 / 15.5 | 12.5 / 15 | 13 / 15.5 | 12.5 / 15 | 12 / 15.5 |
5.8 | Rampe maximum, avec/sans charge (S2 5') % | 27 / 32 (d) | 26.5 / 31.5 (d) | 26 / 31 (d) | 25.5 / 30.5 (d) | 26 / 31 (d) | 25.5 / 30.5 (d) | 25 / 30 (d) |
5.10 | Frein de service: mécanique / hydraulique / électrique / pneumatique | hydraulique | hydraulique | hydraulique | hydraulique | hydraulique | hydraulique | hydraulique |
| | | | | | | | |
Moteur électrique | | | | | | | | |
6.1 | Moteur de traction, puissance (S2 60') kW | 6 x 2 | 6 x 2 | 6 x 2 | 6 x 2 | 6 x 2 | 6 x 2 | 6 x 2 |
6.2 | Moteur de levée, puissance (S3 15%) kW | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
6.4 | Voltage batterie / capacité nominale (K5) V/Ah | 48 / 420 - 500 | 48 / 420 - 500 | 48 / 525 - 625 | 48 / 525 - 625 | 48 / 630 - 750 | 48 / 630 - 750 | 48 / 630 - 750 |
6.5 | Poids de la batterie kg | 775 | 775 | 920 | 920 | 1090 | 1090 | 1090 |
| | | | | | | | |
Divers | | | | | | | | |
8.1 | Type de contrôle | Inverter MOSFET | Inverter MOSFET | Inverter MOSFET | Inverter MOSFET | Inverter MOSFET | Inverter MOSFET | Inverter MOSFET |
8.2 | Pression hydraulique pour accessoires bar | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
